A 25-story tower going up in the Loop required a 45-foot excavation right next to a 1920s terra cotta facade. The general contractor knew that a standard soldier pile and lagging wall would deflect too much, risking costly damage to the neighboring landmark. We designed a multi-level active anchor system that tied back into the dolomite bedrock at a 30-degree angle, prestressing each tendon to 80% of its ultimate capacity to limit horizontal movement. This approach kept the adjacent building settlement under a quarter-inch, a threshold the structural engineer confirmed after reviewing our deep excavation monitoring data. Chicago's dense urban fabric, with its mix of century-old foundations and new high-rises, demands this kind of precision in anchor design. Whether you are dealing with a deep basement in River North or a retaining structure along the Chicago River, the wrong anchorage strategy can cascade into schedule delays and third-party claims. Our team handles the full design sequence: from pull-out capacity calculations based on site-specific SPT drilling and laboratory shear strength data, through to lift-off testing and long-term lock-off load verification. We work directly with contractors to sequence the tieback installation so that excavation can proceed without waiting on concrete curing cycles, which often cuts a week or more from the overall schedule.
Anchoring in Chicago means designing for 60 feet of urban fill and locking in wall movement before the excavation even reaches the next level.
Methodology and scope
Chicago's architectural legacy is inseparable from its geotechnical challenges. The reversal of the Chicago River in 1900 and the subsequent infilling of the shoreline created a downtown area underlain by up to 60 feet of compressible lacustrine silts and sands, often containing buried timber foundations and debris from the Great Fire era. When you drill through this urban fill, you encounter a layer cake of beach sand, soft blue-gray clay, and glacial till before reaching the dolomite bedrock. Anchor design here is not just about capacity; it is about bond length placement in competent strata below the zone of seasonal groundwater fluctuation. We specify double corrosion protection for permanent anchors in Chicago because de-icing salts from decades of winter road treatment have elevated chloride levels in the near-surface groundwater, a condition our engineers have documented through resistivity profiling. A passive anchor system, which engages only after the wall begins to move, can work for temporary shoring in the stiff till, but any excavation adjacent to a CTA tunnel or a landmark building requires active prestressing to lock in the geometry before the first inch of soil is removed beneath the anchor level. We calibrate the unbonded length to extend well beyond the theoretical failure wedge, referencing the Illinois Tollway geotechnical manual, and we never assume bedrock competence without a rock coring program to rule out the karstic voids that occasionally appear in the Racine Dolomite formation.

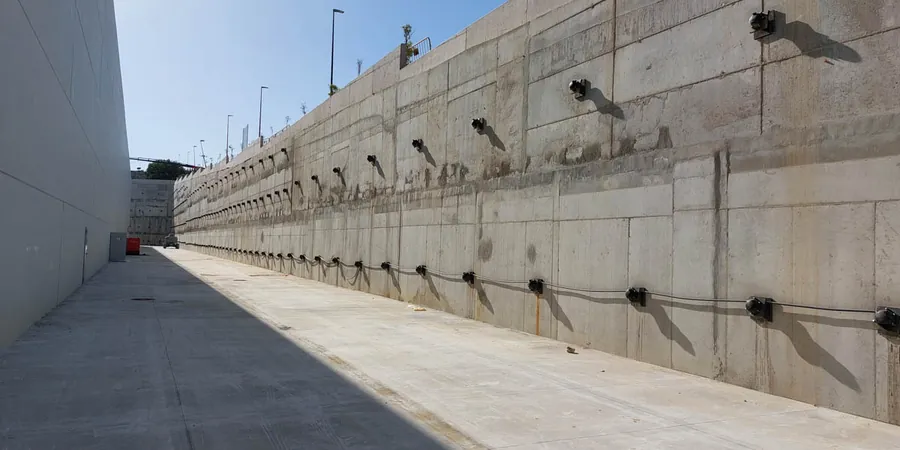

Technical reference image — Chicago
Local considerations
IBC 2021 Section 1810 and the Chicago Building Code Chapter 18 place explicit responsibility on the special inspector to verify anchor installation, but the real risk window opens during excavation. An active anchor that loses its lock-off load due to tendon relaxation or creep in the bond zone can allow a wall to drift a full inch before anyone notices, which is enough to crack a party wall and trigger a lawsuit. We have investigated several failures in the South Loop where passive anchors were mistakenly used in soft clay with an assumed undrained shear strength that turned out to be half of what was needed. The wall rotated, the street settled, and the repair cost exceeded the original anchor budget. Our design process mitigates this by requiring sacrificial anchor testing at the very start of the project, before production drilling, to validate the ultimate bond stress. We also specify electronic load cells at the anchor head for any excavation deeper than 30 feet within 50 feet of an occupied structure, transmitting real-time data to the project engineer's dashboard. The additional instrumentation cost is marginal compared to the liability of a single structural claim in downtown Chicago, and it provides the documentation that insurers and building department plan examiners now routinely request.
Active (prestressed bars/strands) and passive (grouted bars)
Design standard
PTI DC35.1-14, AASHTO LRFD 9th Ed., IBC 2021
Corrosion protection
Class I double protection for permanent anchors per PTI recommendations
Bond length verification
Field pull-out tests to 133% of design load on sacrificial anchors
Drilling method
Duplex drilling through fill, top-hammer through till and rock
Typical lock-off load
70-80% of service load for active anchors; zero initial load for passive
Proof testing frequency
Performance test on 5% of anchors, proof test on remaining 95%
Grout specification
Neat cement grout, w/c ratio 0.40-0.45, compressive strength >4,000 psi at 7 days
Associated technical services
01
Active Tieback Design for Deep Excavations
Full design of prestressed, multi-level tieback systems for cuts up to 60 feet deep, including bond zone analysis in Chicago's dolomite bedrock and glacial till. We deliver construction-ready plans with tendon spacing, free length, and lock-off load schedules.
02
Passive Soil Nail and Rock Dowel Systems
Design of grouted passive reinforcement for permanent retaining walls and slope stabilization along the Des Plaines River and Calumet corridors, where ground conditions favor dense granular soils.
03
Anchored Wall and Underpinning Design
Integrated structural and geotechnical design of anchored soldier pile walls, secant pile walls, and micropile underpinning for projects adjacent to existing Chicago building foundations and CTA infrastructure.
04
Load Testing and Anchor Performance Verification
On-site supervision of sacrificial anchor pull-out tests, proof tests, and long-term lift-off checks. We correlate field performance with original design assumptions and adjust installation parameters in real time.
Applicable standards
PTI DC35.1-14 (Recommendations for Prestressed Rock and Soil Anchors), AASHTO LRFD Bridge Design Specifications, 9th Edition, IBC 2021 Section 1810 (Anchors), ASTM A416/A416M (Low-Relaxation, Seven-Wire Steel Strand), Chicago Building Code Chapter 18 (Soils and Foundations)
Frequently asked questions
What is the typical cost range for anchor design on a Chicago excavation project?
For a mid-rise excavation in Chicago, the engineering design fee for an active/passive anchor system typically falls between US$1,050 and US$4,140, depending on the number of anchor levels, the complexity of the adjacent structures, and the extent of load testing required. This covers the design calculations, construction drawings, and field testing supervision.
How do you determine whether active or passive anchors are needed for a Chicago site?
The decision hinges on the allowable deflection for adjacent infrastructure. Active anchors are prestressed to lock in the wall position before excavation continues, making them essential when you are next to CTA tunnels, landmark buildings, or utilities. Passive anchors engage only after the soil mass moves, which can be acceptable in open sites with no adjacent structures. We analyze the soil stratigraphy, the proximity of sensitive receptors, and the project's risk tolerance before recommending a system.
How does Chicago's urban fill affect anchor bond capacity?
The urban fill layer in downtown Chicago, which can extend to 60 feet, has highly variable composition including demolition debris, timber, and organic silts. We never rely on this zone for bond capacity. The unbonded length is cased through the fill and the bond zone is placed entirely in the underlying glacial till or dolomite bedrock. Duplex drilling methods are used to prevent hole collapse during installation through the fill.
What corrosion protection is required for permanent anchors in Chicago?
Permanent anchors in Chicago require Class I double corrosion protection per PTI DC35.1-14. This means each tendon is encapsulated in a corrugated plastic sheath filled with grease over the unbonded length, and the entire anchor is grouted inside a second corrugated duct over the bond length. This is critical in Chicago due to elevated chloride levels from decades of de-icing salt infiltration into the groundwater.
How long does anchor installation and testing take on a typical Chicago project?
Installation speed depends on the drilling conditions, but a typical production rate is 2 to 4 anchors per day per drill rig when working in Chicago's till and dolomite. The critical path item is usually the grout curing time before stressing, which is 5 to 7 days for neat cement grout to reach the required 4,000 psi. We stage the work so that drilling and grouting proceed on one section while previously grouted anchors cure on another, keeping the excavation sequence moving.
