SEE MORE →Geotechnical laboratory testing forms the backbone of subsurface investigation and foundation design across Chicago's dynamic urban landscape. This category encompasses the full spectrum of standardized soil and rock characterization procedures—from basic index properties to advanced strength and consolidation testing—that transform field samples into actionable engineering parameters. In a city where high-rise construction pushes deeper into the glacial deposits underlying the Loop and where infrastructure rehabilitation contends with century-old fill materials, laboratory data provides the quantitative foundation for assessing bearing capacity, settlement potential, and earth pressure conditions. Without rigorous laboratory programs, geotechnical engineers would lack the material-specific parameters required to model complex soil-structure interaction scenarios or to comply with the Chicago Building Code's performance-based design provisions.
Chicago's unique glacial geology demands a particularly thorough laboratory approach. The city rests on a sequence of Wisconsin Episode tills, lacustrine clays, and outwash deposits overlying Silurian dolomite bedrock, with compressible organic silts and peats frequently encountered near the Lake Michigan shoreline and former stream corridors. The Atterberg limits test becomes critical here for distinguishing between the stiff clay tills of the Valparaiso and Wadsworth formations and the softer, more compressible lacustrine deposits of glacial Lake Chicago. These index properties, combined with natural moisture content and unit weight determinations, allow engineers to identify potentially expansive or collapsible horizons that have historically caused differential settlement in Chicago's older masonry structures. The layered stratigraphy—often exhibiting sharp transitions between granular outwash and cohesive till—requires careful laboratory characterization to predict groundwater flow paths and excavation dewatering requirements.
The regulatory framework governing geotechnical laboratory testing in Chicago derives primarily from the Chicago Building Code, which adopts the International Building Code (IBC) with local amendments, and from Illinois Department of Transportation (IDOT) specifications for public infrastructure projects. ASTM International standards serve as the primary reference for test procedures, with ASTM D422 for particle-size analysis, ASTM D4318 for Atterberg limits, and ASTM D2435 for consolidation testing being among the most frequently specified. The Chicago Department of Transportation (CDOT) mandates specific laboratory quality control protocols for projects within the public right-of-way, including proficiency testing programs and equipment calibration schedules aligned with AASHTO R18 requirements. For federally funded projects, the Code of Federal Regulations (23 CFR 637) imposes additional independent assurance testing requirements that must be performed by accredited laboratories, ensuring that the grain size analysis (sieve + hydrometer) and other classification tests meet rigorous precision standards.
Laboratory testing programs in Chicago support a diverse range of project types, each imposing distinct testing requirements. High-rise developments in the central business district typically require extensive consolidation and triaxial shear testing to address deep foundation design in compressible clays, while transportation infrastructure projects emphasize compaction characteristics and resilient modulus for pavement design. Environmental remediation sites—prevalent throughout Chicago's industrial corridors—combine geotechnical index testing with chemical analysis to characterize contaminated fill materials. The grain size analysis (sieve + hydrometer) proves essential for assessing the suitability of on-site soils for reuse as engineered fill, particularly in brownfield redevelopment scenarios where import of clean material carries significant logistical constraints. Waterfront projects along Lake Michigan and the Chicago River system demand specialized laboratory programs addressing hydraulic conductivity and erosion potential, parameters directly influenced by the Atterberg limits and gradation characteristics of near-surface soils.
The Chicago Department of Buildings typically requires index property tests including natural moisture content, Atterberg limits, and grain size distribution with hydrometer analysis for foundation design submissions. Consolidation tests are mandated when compressible clay layers exceed 10 feet in thickness, while unconfined compression or triaxial shear tests must support bearing capacity calculations for structures exceeding three stories, per the Chicago Building Code's geotechnical investigation requirements.
Chicago's glacial stratigraphy—comprising alternating till, lacustrine clay, and outwash deposits—requires careful laboratory characterization to distinguish between stiff overconsolidated tills and softer normally consolidated clays. Atterberg limits and natural moisture content profiles help identify the geologically controlled transitions that govern settlement behavior, while grain size analysis differentiates free-draining outwash from low-permeability till units critical for dewatering design in deep excavations.
The Chicago Department of Transportation requires laboratories to maintain AASHTO R18 accreditation through the AASHTO Accreditation Program for all geotechnical testing on public infrastructure projects. This includes proficiency sample testing, equipment calibration verification, and annual on-site assessments. Laboratories must also comply with CDOT's Quality Assurance Program requirements, which mandate independent verification testing frequencies for soil classification and compaction control.

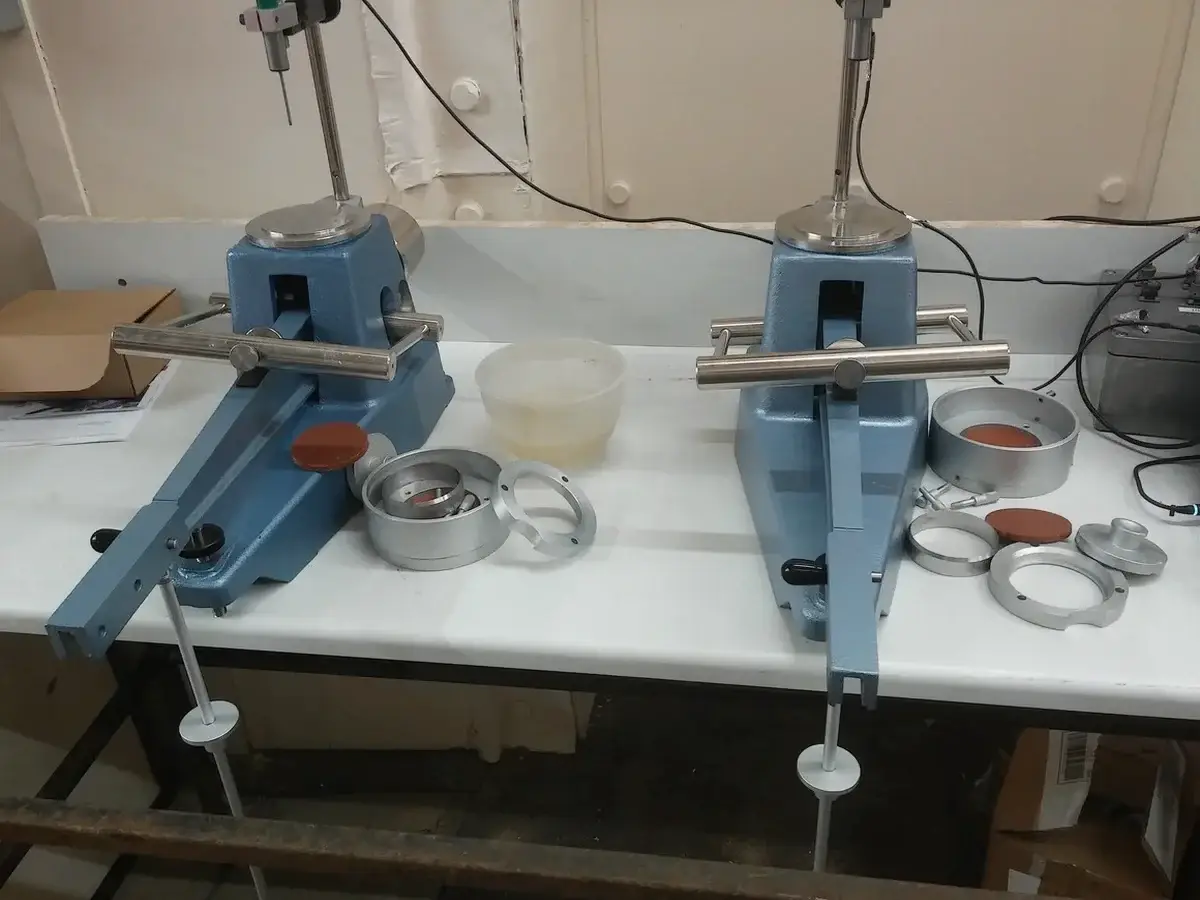

Standard index testing including grain size analysis and Atterberg limits typically requires 5 to 7 business days, while consolidation testing may extend to 2 to 3 weeks due to incremental loading schedules. Triaxial shear testing programs add approximately 2 weeks for effective stress testing with pore pressure measurement. Expedited services are available for time-sensitive projects, but consolidation testing remains constrained by the physical time required for pore pressure dissipation in Chicago's fine-grained glacial soils.
