Base Isolation Seismic Design in Chicago: Engineering for Soft Ground and Lateral Drift

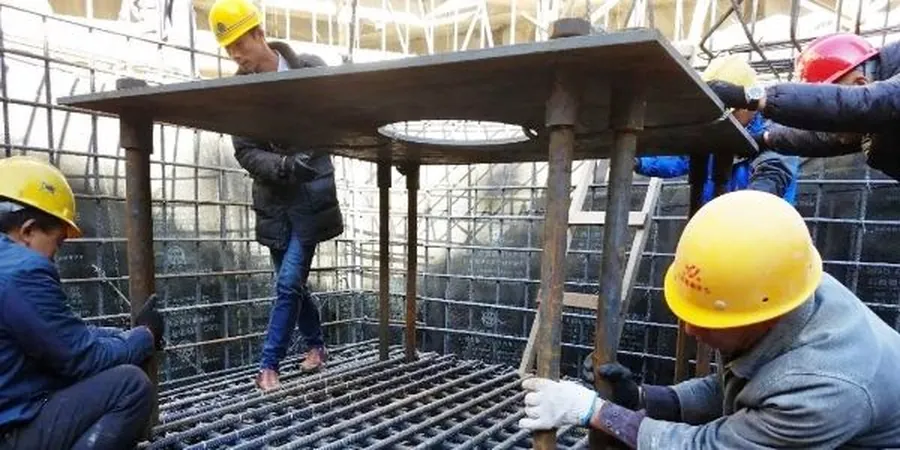

We still see project teams in Chicago assume that because the city sits far from a plate boundary, seismic detailing is just a box to tick on the permit set. Then they hit the soft, compressible glacial Lake Chicago deposits, and the dynamic amplification in those upper 30 meters tells a different story. A conventional fixed-base design on this soil profile can amplify ground motion well into the range that damages non-structural systems and brittle cladding connections. Base isolation decouples the structure from that amplified motion, and doing it right here means pairing ASCE 7-22 Chapter 17 with a site-specific seismic microzonation study that captures the impedance contrast at the top of rock. For deep foundations in the downtown Loop, we often tie the isolation plane into a mat foundation to manage overturning demands while keeping the superstructure elastic under the MCE₂ spectrum.

On Chicago’s soft glacial clays, a well-designed base isolation system cuts the base shear demand by 60–70% compared to a fixed-base structure, but only if the moat detailing survives a Chicago winter.

Methodology and scope

Chicago’s winter freeze-thaw cycles aren’t just a concrete durability problem—they change the lateral stiffness of the soil around the isolation moat, and that directly affects the gap distance you need to leave for the design displacement. We learned this the hard way on a mid-rise near the Chicago River, where frost heave in the backfill closed the moat gap by almost 40 mm during a February cold snap. A proper base isolation design here has to account for that seasonal soil-structure interaction, plus the long-period energy that travels efficiently through the deep lakebed clay. Our approach runs nonlinear time-history analysis with a suite of ground motions scaled to the ASCE 7 Chapter 21 MCE₂ response spectrum, and we isolate the superstructure using high-damping rubber bearings or triple friction pendulum systems depending on the period shift required. For sites with marginal bearing capacity, we sometimes combine the isolation system with stone columns to stiffen the founding stratum without increasing the spectral acceleration demand at the isolator level. The isolator testing protocol follows the ASCE 7 prototype and production test sequence, including aging, scragging, and full-scale dynamic characterization at the design displacement and velocity.

Local considerations

The subsurface across much of Chicago is a sequence of glacial till and up to 30 meters of compressible lacustrine clay from ancestral Lake Chicago. That clay has a shear wave velocity (Vₛ) often below 150 m/s in the upper layers, pushing sites into Site Class E or even F when organic lenses are present. Amplification factors in ASCE 7-22 Table 11.4-2 for these soft soil profiles can exceed 2.5 at short periods, which means a fixed-base structure sees far more seismic demand than the USGS mapped values suggest. We also have to watch for long-period basin effects: energy from the New Madrid Seismic Zone, 500 kilometers southwest, can propagate through the bedrock and get trapped in the sedimentary basin under Lake Michigan, producing surprisingly high spectral displacements at periods above 2 seconds. A base isolation design that ignores basin resonance risks underestimating the isolator displacement by 20–30%. The IBC 2024 now requires explicit consideration of these basin amplification effects for structures on soft soil sites within 100 km of a major water body, which covers essentially the entire Chicago shoreline and the Chicago River corridor.

Technical parameters

Parameter	Typical value
Design spectral acceleration at 1-second period (S₁)	0.10–0.25g (varies by site class, ASCE 7-22)
Typical isolator period (Tₛ)	2.5–4.0 seconds
Effective damping ratio (βₑₐₐ)	15–30% (LRB / friction pendulum)
Moat gap design displacement (Dₑₐ)	300–700 mm (MCE₂, including torsion)
Soil profile type (common)	Site Class D to F (Lake Michigan clays)
Required isolator testing standard	ASCE 7-22 Section 17.8, ISO 22762
Lower bound / upper bound analysis	Property modification factors per ASCE 7 Table 17.2.3-1

Associated technical services

Nonlinear Time-History Analysis and Isolator Specification

We build three-dimensional models in ETABS and Perform-3D with isolator elements calibrated to prototype test data from the manufacturer. The ground motion suite includes far-field records from the New Madrid zone and near-field records scaled to match the Chicago site-specific MCE₂ spectrum, following the ASCE 7 two-dimensional selection criteria.

Moat Detailing and Utility Crossing Design

The moat is the most common failure point we see in cold climates. We detail the moat cover, waterproofing, and frost-protected drainage to handle the full design displacement plus 50 mm of additional clearance for ice lens formation, and we coordinate all utility crossings with flexible couplings rated for the isolator displacement.

Applicable standards

ASCE/SEI 7-22 Minimum Design Loads and Associated Criteria for Buildings and Other Structures (Chapter 17: Seismic Isolation), IBC 2024 Section 1613 and Chapter 18 (Soils and Foundations), ISO 22762 Elastomeric seismic-protection isolators, AASHTO Guide Specifications for Seismic Isolation Design (for transportation structures), FEMA P-751 NEHRP Recommended Provisions: Seismic Isolation

Frequently asked questions

Does Chicago actually need base isolation? The seismic hazard seems low on the USGS maps.

The USGS maps show moderate hazard, but the soil amplification on Chicago’s soft lakebed clays can triple the short-period spectral acceleration. For essential facilities, high-occupancy buildings, or structures with expensive internal equipment, base isolation is often the most economical way to keep the superstructure elastic and protect the contents during a 475- or 2475-year event.

How long does the isolator testing and approval process take for a Chicago project?

From prototype testing through production testing, plan on 12–16 weeks. The ASCE 7 prototype test sequence includes aging, scragging, and a full suite of dynamic tests at three displacement levels. Production tests sample 20% of the isolators unless the project qualifies for reduced testing under the IBC. We front-load the specification and testing schedule early in design development to avoid delaying foundation construction.

What does a base isolation design package typically cost for a mid-rise building in Chicago?

For a mid-rise (5–12 stories) on a typical Chicago soft-soil site, the complete design package including nonlinear time-history analysis, isolator specification, moat detailing, and peer review coordination usually runs between US$4,540 and US$8,490, depending on the number of ground motion pairs required and the complexity of the superstructure irregularity.

Can you retrofit an existing Chicago building with base isolation?

Yes, and we have done it for unreinforced masonry and early reinforced concrete buildings in the River North and Gold Coast areas. The retrofit involves cutting the building free at the foundation level or just above the basement, installing temporary jacking supports, placing the isolators, and then reconnecting utilities. The biggest challenge in Chicago is managing groundwater during the excavation for the new isolation plane, since the water table is often within 2–3 meters of grade near the lakefront.
