Chicago grew on a swamp. The reversal of the Chicago River in 1900 and the debris from the Great Fire of 1871 literally built the ground we stand on today, leaving a legacy of fill, compressible clays, and a high water table across the Loop and surrounding neighborhoods.

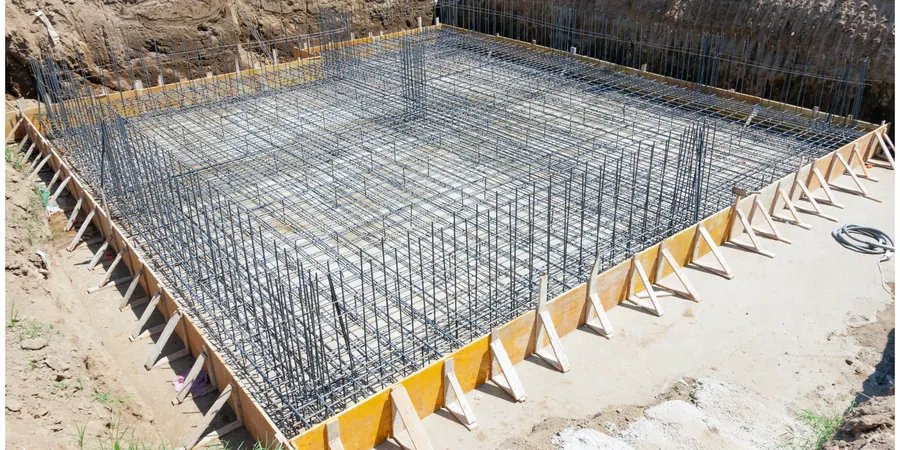

That history means every mat foundation here starts with a geotechnical puzzle: what is the actual bearing stratum, how deep does the compressible layer run, and how will the load distribute across a slab that may sit on four different materials in a single city block. We approach raft foundation design by answering those questions with site-specific data: borings to refusal, consolidation curves from undisturbed samples, and groundwater monitoring through at least one seasonal cycle.
In the South Loop, where old railyards left hydrocarbon-stained fill, we complement the investigation with test pits to map fill thickness before modeling raft stiffness. For sites near the lakefront, where sand lenses can trigger differential settlement, we also integrate CPT soundings to refine the stratigraphy without disturbing the sensitive clay fabric.
Chicago soft clay can lose 60% of its strength if sampled poorly. Our lab starts consolidation tests within 72 hours of extraction to preserve natural fabric and preconsolidation memory.
Methodology and scope
The soil profile beneath Chicago is dominated by the Lake Michigan lacustrine sequence: a crust of desiccated clay over soft, normally consolidated silty clay that can reach 30 meters thick before hitting hardpan or dolomite bedrock. This soft clay has undrained shear strengths often below 25 kPa in the upper 5 meters and a coefficient of consolidation that makes primary settlement take months, not days.
Our raft foundation design workflow starts by extracting thin-walled Shelby tube samples at three depths within the compressible zone and running incremental consolidation tests under loads matching the building's pressure bulb. We then feed the compression index, recompression index, and preconsolidation pressure into a 3D settlement model — not a simple 1D spreadsheet — to capture the effect of the stiff crust bridging over the soft core.
For high-rises near the Chicago River, where the water table sits barely 2 meters below grade, the raft must also resist hydrostatic uplift during construction. We specify sub-slab drainage layers, monitor piezometric levels for at least four weeks, and coordinate the dewatering schedule with the structural team so the mat never sees unbalanced pressure before the superstructure dead load is in place. Every parameter we deliver — modulus of subgrade reaction, allowable bearing pressure, total and differential settlement — comes with a clear statement of the safety factor applied and the limit state it corresponds to.
Local considerations
The most common mistake we see is assuming that a thicker raft automatically solves the differential settlement problem on Chicago's compressible clays.
A contractor pours a 1.2-meter mat, the structural engineer runs a uniform spring model, and everyone ignores the fact that the northeast corner of the site sits on 4 meters of sand fill while the southwest corner has 10 meters of soft clay over dolomite. Within two years, the building tilts, the elevator pits crack, and the plumbing risers bind.
We prevent this by running a variable spring model calibrated to each boring location — not an average profile — and by specifying a staged loading sequence during construction so the clay can consolidate under partial dead load before the full live load comes online. On one project in River North, this approach reduced predicted differential settlement from 35 mm to under 12 mm simply by rebalancing the raft thickness and adding a short settlement-monitoring hold at the 60% load stage. The cost of that analysis was less than the cost of repairing one cracked shear wall.
Frequently asked questions
How much does a raft foundation geotechnical investigation cost in Chicago?
For a typical Chicago project — two borings to 25 meters, Shelby tube sampling, consolidation and strength tests, and a settlement report — the cost ranges from US$1,090 to US$3,640 depending on site access, number of samples, and whether groundwater monitoring extends beyond one month.
How long does consolidation testing take for Chicago soft clay?
Each incremental consolidation test runs 6 to 10 days per sample because the load increments must be held until primary consolidation is complete. We typically test three samples per boring, so the lab phase alone takes three to four weeks before the settlement analysis begins.
When is a raft foundation better than isolated footings in Chicago?
A raft becomes the better choice when the bearing stratum is deep, the compressible clay thickness varies by more than 3 meters across the footprint, or the water table is high enough to require uplift resistance. In these conditions — common near the river and in the Loop — isolated footings would experience unacceptable differential settlement.
What groundwater level do you assume for raft uplift design in Chicago?
We base the design groundwater level on at least one full seasonal cycle of piezometer readings, plus a safety margin of 0.5 to 1.0 meter above the maximum recorded level. Near the Chicago River, the sustained high water table typically sits between 1.5 and 2.8 meters below grade, but seasonal fluctuations and storm events can push it higher.
