Geotechnical Design of Deep Excavations in Chicago

Together, we solve the challenges of tomorrow.

LEARN MORE →

Chicago's architectural legacy, from the reversal of the Chicago River in 1900 to the rise of the 1,450-foot Willis Tower, has always demanded engineering that confronts the city's challenging subsurface head-on. Beneath the Loop and extending outward into neighborhoods built on an ancient lakebed, contractors routinely encounter a layered sequence of compressible clays, silts, and perched groundwater tables that make any cut deeper than 12 feet a significant undertaking. The team has designed support systems for excavations ranging from tight urban infill sites in River North to large-scale infrastructure shafts in the South Loop, where the proximity of century-old clay-tile utilities and adjacent high-rises leaves no margin for error. This work requires not just a familiarity with the Chicago Building Code, but a granular understanding of how the Blodgett and Park Ridge till units behave under unloading. A comprehensive slope stability analysis often becomes the starting point before any vertical cut is even considered, ensuring that preliminary site grading won't inadvertently trigger a surficial failure that endangers the perimeter.

In Chicago's compressible clays, basal heave during a deep excavation can mobilize a soil volume extending twice the cut depth behind the wall, threatening foundations an entire block away.

Methodology and scope

A common observation from decades of work in the city is that the upper 15 to 20 feet of soil in many downtown blocks consists of undocumented urban fill, a chaotic mix of demolition debris, cinders, and reworked lake sand that behaves unpredictably during excavation. This makes the design of soldier pile and lagging walls particularly sensitive to the actual condition of the ground, because theoretical parameters derived from a textbook just don't capture the voids and old foundation remnants that a backhoe might uncover. Our approach integrates field data from test pits and cone penetration testing to calibrate the soil model, which then informs the spacing of tieback anchors and the required embedment depth for cantilever stages. When the excavation approaches the design subgrade in the compressible Chicago clay, we evaluate basal heave potential using bearing capacity factors modified for the local undrained shear strength profile, a calculation that directly dictates whether a jet grout strut or a reinforced concrete floor slab must be installed in a time-critical sequence. The interaction between the excavation support system and the surrounding soil mass is modeled in PLAXIS 2D and 3D, capturing the stress redistribution that occurs when dewatering wells begin to draw down the water table. This modeling is essential because the drawdown can induce settlement in adjacent buildings founded on shallow footings, and the resulting angular distortion must be kept below the thresholds specified in the MOPO and adjacent property protection ordinances.
Geotechnical Design of Deep Excavations in Chicago

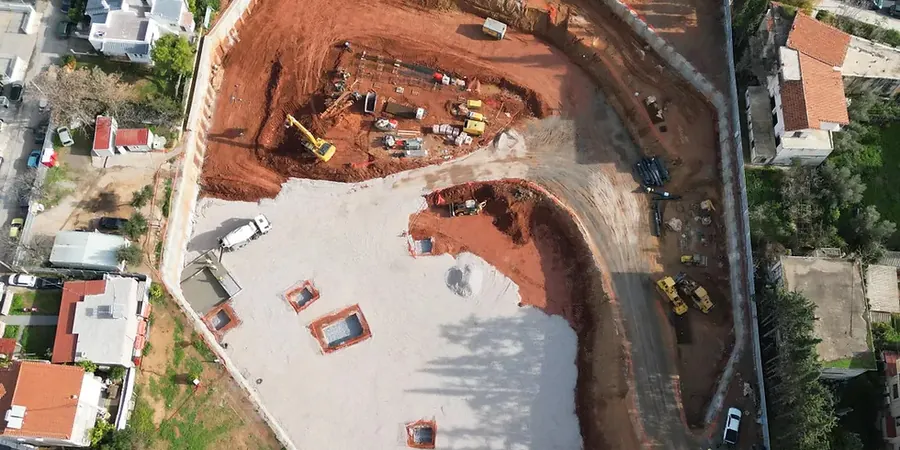

Technical reference image — Chicago

Local considerations

The risk profile for a deep excavation in Streeterville, with its dense cluster of high-rises on shallow mats, differs sharply from a site in the Bridgeport neighborhood, where lower building densities and a thicker sand lens within the till might provide natural drainage. In the central business district, a single miscalculation of the earth pressure distribution on a sheet pile wall can translate into lateral movements exceeding two inches, enough to crack brittle terra cotta facades and sever utility connections at the building line. The most acute hazard is hydraulic: uncontrolled seepage through a sand seam in the till can create a piping failure that erodes material from behind the wall, forming a void that collapses without warning. To counter this, we specify rigorous pre-excavation grouting and real-time monitoring arrays that track inclinometer deflections and piezometric levels every four hours during critical phases. The financial and legal consequences of a failure are amplified by Chicago's shared party-wall conditions, where damage to a neighboring structure triggers a chain of claims under the city's adjacent property protection requirements, making a solid excavation monitoring plan a non-negotiable component of the geotechnical scope.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.org

Technical parameters

ParameterTypical value
Typical Excavation Depth Range in Chicago15 to 65 feet below street grade
Predominant Soil Units EncounteredUrban fill, Park Ridge Till, Blodgett Till, Chicago Clay (glacial lacustrine)
Groundwater Control MethodsDeep wells, wellpoints, or ejector systems depending on hydraulic conductivity
Design Standard for Earth PressuresTerzaghi & Peck apparent earth pressure diagrams, modified for local till
Analysis SoftwarePLAXIS 2D/3D, DeepEX, WALLAP
Maximum Allowable Adjacent SettlementAngular distortion less than 1/500 per Chicago building code criteria
Tieback Anchor Capacity VerificationProof testing to 133% of design load per PTI DC-35 recommendations

Associated technical services

01

Excavation Support System Design

Complete design of soldier pile and lagging, secant pile, and sheet pile walls with tieback or internal bracing systems, optimized for Chicago's urban fill and clay strata.

02

Groundwater Control and Dewatering Plans

Hydrogeologic assessment and design of dewatering systems to manage perched water and depressurize sand lenses encountered during deep cuts, preventing base instability.

03

3D Finite Element Modeling of Excavation Sequences

Staged construction simulation in PLAXIS 3D to predict wall deflections, ground surface settlements, and the impact on adjacent shallow foundations and utilities.

04

Construction-Phase Instrumentation and Monitoring

Installation and interpretation of inclinometers, optical survey points, and piezometers, with threshold-based reporting to protect adjacent properties during excavation and dewatering.

Applicable standards

Chicago Building Code, Chapter 33 (Excavations and Earthwork), FHWA GEC No. 4: Ground Anchors and Anchored Systems (1999), ASCE 7-22: Minimum Design Loads for Buildings, ASTM D1586-18: Standard Test Method for Penetration Test (SPT), PTI DC-35: Recommendations for Prestressed Rock and Soil Anchors, IDOT Standard Specifications for Road and Bridge Construction (earth retention)

Frequently asked questions

What geotechnical information is required before designing a deep excavation in Chicago?

A comprehensive site investigation must extend at least twice the planned excavation depth below the cut. We typically specify a combination of mud-rotary borings with SPT sampling, continuous Shelby tube samples in the Chicago clay for triaxial testing, and CPT soundings to delineate the interface between the till units and the underlying lacustrine deposits. Laboratory testing includes unconsolidated-undrained and consolidated-undrained triaxial tests to define the undrained shear strength profile, which controls basal stability calculations.

How do you protect adjacent historic buildings during a deep basement excavation?

Protection starts with a detailed condition survey of the adjacent structures and an assessment of their foundation type and depth. We design the shoring wall to limit lateral deflections to a fraction of an inch, often using a combination of pre-loaded tiebacks and a stiff concrete waler system. A real-time optical monitoring array is installed on the neighboring facades, and if movements approach 50 percent of the allowable threshold, we implement contingency measures such as compaction grouting beneath the affected footings.

What is the typical cost range for geotechnical design of a deep excavation in Chicago?

The geotechnical design scope for a deep excavation in Chicago typically ranges from US$1,830 for a straightforward single-tier cantilever wall analysis to US$8,890 for a complex, multi-level tied-back system with 3D finite element modeling, staged dewatering analysis, and full construction-phase monitoring specifications. The final fee depends on the excavation footprint, the number of adjacent structures requiring settlement analysis, and the complexity of the groundwater control system.

Can a deep excavation be designed without tiebacks that encroach onto neighboring property?

Yes, but the alternatives require careful evaluation. Internal bracing with steel struts or concrete floor slabs can eliminate the need for easements, but the sequencing becomes more complex and the bracing interferes with the construction of the permanent structure. Another option is a cantilever secant pile wall, though its practical depth limit in Chicago's soft clays is about 18 to 22 feet before deflections become unacceptably large. For deeper cuts without tiebacks, we often design a top-down construction sequence using the permanent floor diaphragms as lateral support.
