Deep Foundation Engineering for Chicago's Glacial Soils

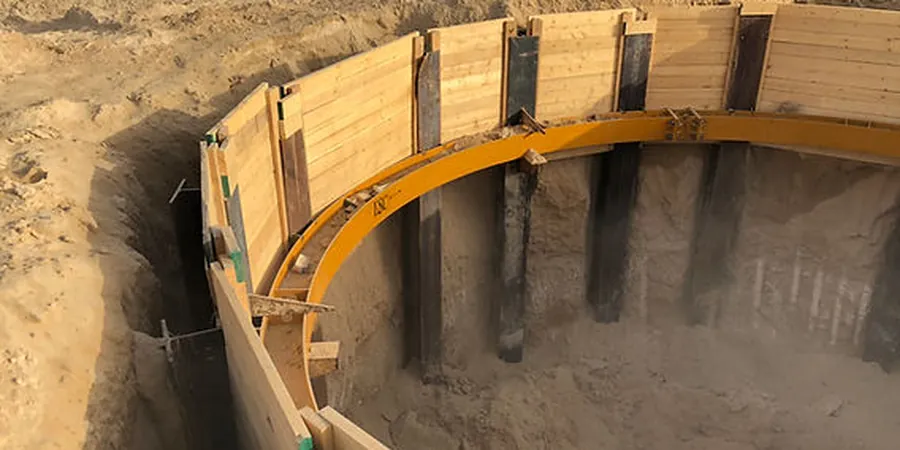

The geology beneath Chicago tells a story of ancient lakebeds and glacial retreat, and that story matters when you're sending loads to bedrock. Much of the city sits on a thick sequence of compressible clay till interspersed with silt and sand lenses, which is why shallow footings often fall short for mid-rise and high-rise structures. We routinely see projects in the Loop and River North where the stiff clay crust gives way to softer deposits below, demanding a pile foundation design that accounts for negative skin friction and long-term settlement. Before mobilizing a drill rig, our team coordinates with the CPT testing crew to map the stratigraphy continuously, which helps us pick the right bearing stratum and avoid surprises during installation.

In Chicago's layered glacial deposits, ignoring downdrag on piles is the fastest way to a differential settlement claim.

Methodology and scope

A pile job in Streeterville behaves differently than one in Bridgeport, and the difference usually comes down to the water table and the top-of-rock profile. Downtown, the stiff silty clay can support high-capacity drilled shafts socketed into limestone, whereas near the Calumet River we often encounter organic silts and fill that call for driven H-piles or closed-end pipe piles to bypass the compressible zone. Our design approach leans heavily on static capacity methods calibrated with local load-test data, using site-specific undrained shear strength profiles from lab triaxial tests on Shelby tube samples. The IBC 2024 and AASHTO LRFD frameworks guide our resistance factors, and we layer in PDA dynamic testing to confirm driveability and capacity on the first production piles, giving the structural engineer a clean handoff for the pile cap design.

Local considerations

A 20-story residential tower on Michigan Avenue ran into a headache we see too often: the geotechnical report recommended a drilled shaft foundation, but the contractor hit a cobble zone at 45 feet that hadn't appeared in the nearest boring logs. Production stopped for two weeks while the team re-evaluated the socket design. That scenario taught us to push for a tighter boring spacing in areas mapped as the Valparaiso Moraine, where erratic boulders and discontinuous sand pockets can turn a routine pile installation into a change-order nightmare. We also insist on running consolidation tests on each distinct clay layer; failing to quantify the settlement of a pile group under sustained dead load has led to cracked curtain walls in more than one downtown project. A solid pile foundation design here means planning for both the known variability and the hidden surprises.

Technical parameters

Parameter	Typical value
Typical pile types in Chicago	Drilled shafts (caissons), driven H-piles, closed-end pipe piles, ACIP piles
Common bearing stratum	Limestone bedrock (dolomite) or hardpan till at 40–90 ft depth
Frost depth requirement	42 inches per Chicago Building Code
Design code for axial capacity	IBC 2024, AASHTO LRFD Bridge Design Specs (9th Ed.)
Lateral analysis method	LPILE with p-y curves calibrated to local clay stiffness
Dynamic testing standard	ASTM D4945 for high-strain PDA testing
Drilled shaft inspection	Cross-hole sonic logging (ASTM D6760) or thermal integrity profiling

Associated technical services

Axial and Lateral Pile Analysis

Static capacity calculations using alpha and beta methods for cohesive soils, LRFD resistance factors, and lateral deflection analysis with LPILE to size shaft diameter and reinforcement for wind and seismic loads.

PDA Testing and Construction Support

High-strain dynamic testing under ASTM D4945 to confirm pile capacity and structural integrity during driving, plus thermal integrity profiling for augered cast-in-place piles to verify concrete quality and shaft geometry.

Frequently asked questions

What's the typical cost range for a pile foundation design package in Chicago?

For a standalone design package that includes axial and lateral analysis, pile group settlement calculations, and construction specifications, projects in Chicago typically fall between US$1,750 and US$6,910 depending on the number of pile types, the complexity of the soil profile, and whether dynamic testing support is included. A straightforward single-structure job with good boring data lands on the lower end; a multi-building development with variable bedrock depth and lateral load cases will push toward the upper end.

How do Chicago's glacial clays affect pile capacity?

The compressible silty clays of the Lake Michigan and Wedron groups present two main challenges: low undrained shear strength at mid-depth and significant consolidation settlement under group loading. We use oedometer test results to compute the magnitude and rate of settlement, then apply a downdrag load in the axial design. The stiff to hard clay crust near the surface can provide useful lateral resistance, but its stiffness degrades with remolding during installation, so we apply a reduction factor to p-y curves for driven piles.

Do you handle both driven piles and drilled shafts in the Chicago area?

Yes, we design both systems and choose based on site constraints and soil conditions. Driven H-piles work well in the dense fill and sand areas near the old industrial corridors, while drilled shafts (caissons) dominate downtown where vibration limits and hard limestone sockets dictate the method. Our field team supports both with load test instrumentation, cross-hole sonic logging, and dynamic monitoring to verify that the installed pile meets the design assumptions.
