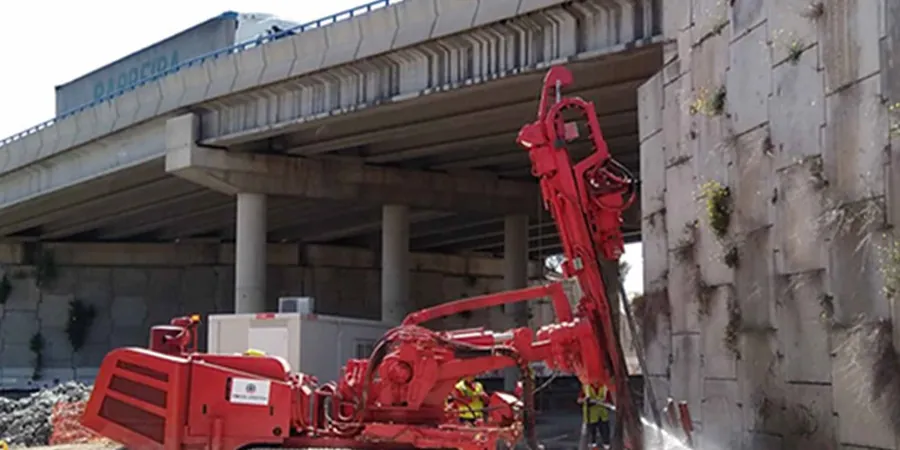

Chicago's rapid ascent from a swampy trading post to a metropolis of skyscrapers is a story written in water and clay. The reversal of the Chicago River in 1900 and the subsequent infill along the lakeshore created a patchwork of artificial ground that still challenges foundation engineers today. Beneath the Loop and its sprawling suburbs lies a complex sequence of glacial till, beach sand, and the notoriously compressible Blodgett and Park Ridge formations. When you encounter loose granular soils or voids in this stratigraphy, a well-designed grouting program becomes essential. We rely on in-situ permeability tests to determine the groutability of the deposit before selecting the right mix, and we often correlate our findings with CPT data to define the lateral extent of the treatment zone with precision.
A successful grouting design in Chicago hinges less on pump pressure and more on matching the grout's particle size to the glacial soil's pore throat diameter.
Local considerations
What we often see in the West Loop and River North is a false sense of security when dealing with the dense, redeposited clay crust. A contractor might assume the ground is tight enough to hold grout, but hidden lenses of saturated peat or loose backfill from the 1871 fire debris can create uncontrolled flow paths. The risk isn't just losing grout into the void; it's hydraulic fracturing into a nearby sewer or basement. We've observed cases where a poorly designed compaction grouting program simply pushed the clay laterally without densifying the target sand, leading to differential settlement later. A rigorous design phase must incorporate a detailed geotechnical baseline report that maps these anomalies, preventing the grouting from becoming a corrective measure rather than a preventive one. The proximity to Lake Michigan also raises the stakes on chemical compatibility, ensuring grout components don't leach into the groundwater.
Frequently asked questions
What is the typical cost range for a grouting design package in Chicago?
For a standard commercial or residential project requiring a grouting design package, including site assessment, laboratory mix design, and field supervision protocol, the cost typically falls between US$1,400 and US$4,160. The final figure depends on the depth of the treatment zone, the complexity of the stratigraphy, and the number of field verification tests required.
When is jet grouting preferred over permeation grouting in Chicago soils?
Jet grouting is preferred when dealing with the heterogeneous fill along the Chicago River or in silty clays where permeation grouting cannot achieve uniform penetration. It mechanically erodes and mixes the soil, creating a soil-cement column with predictable geometry, which is ideal for underpinning near existing foundations.
How do you verify that the grouting has been effective?
Verification involves a combination of pre- and post-grouting SPT or CPT soundings to measure density improvement, coring through the grouted zone to observe the grout columns, and performing packer tests to confirm a reduction in hydraulic conductivity. Real-time monitoring of the injection pressure and volume take curve is the first line of quality control.
Can grouting be performed in winter conditions in Chicago?
Yes, but the design must account for cold-weather concreting practices. We specify heated water for the mix, accelerators to counteract the slower hydration rate of cement at low temperatures, and insulation of surface lines. The ground below a few feet remains workable, but the surface handling requires careful planning to prevent freezing of the grout before it reaches the injection point.
